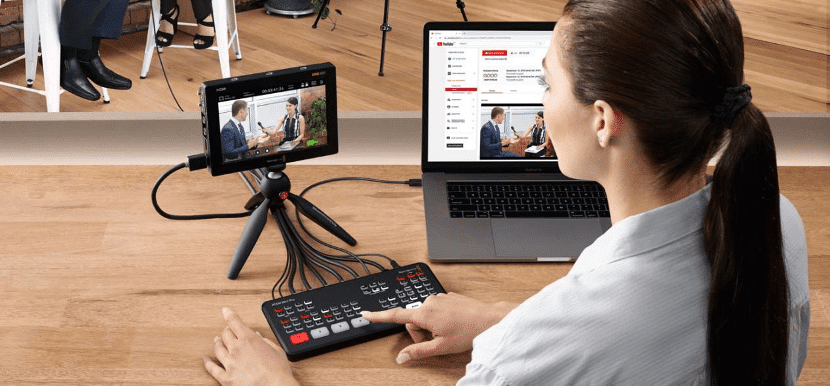

In today’s fast paced digital age, content creators and live streamers are constantly seeking innovative tools to enhance their productions. The Blackmagic ATEM Mini Pro is one such device that has taken the industry by storm, providing a cost-effective and powerful solution for live video switching and streaming. In this blog post, we’ll explore the features and capabilities of the Blackmagic ATEM Mini Pro and how it’s changing the game for content creators everywhere.
Small but Mighty
Table of Contents

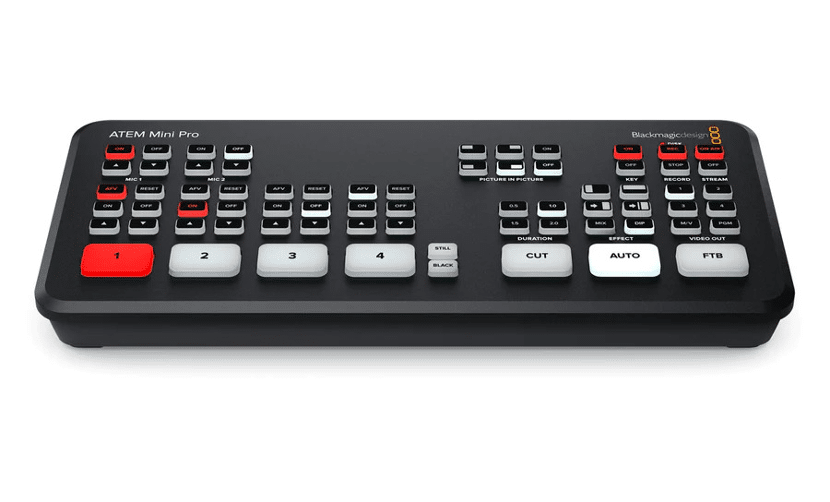

The Blackmagic ATEM Mini Pro may be small in size, but it’s packed with a plethora of features that make it an invaluable tool for live production. At just 9.3 inches wide and weighing only 2.2 pounds, it’s a portable powerhouse that can be easily integrated into any setup. Whether you’re a solo content creator, a small production team, or a live event organizer, the ATEM Mini Pro’s compact design makes it a versatile choice.
Multi Camera Magic

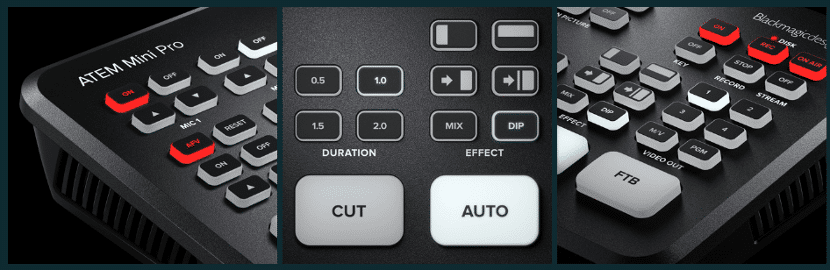

One of the standout features of the ATEM Mini Pro is its ability to handle up to four HDMI inputs. This means you can connect multiple cameras, laptops, gaming consoles, or any HDMI source and seamlessly switch between them during your live broadcast. The intuitive control panel allows you to cut, dissolve, or use a variety of stunning transitions, giving your audience a professional viewing experience.
Live Streaming Made Easy
The ATEM Mini Pro is not just a video switcher; it’s also a live streaming device. With builtin hardware encoding, it can take your production to the next level by streaming directly to platforms like YouTube, Facebook Live, or Twitch. The device supports streaming in full HD, ensuring your viewers get the best possible quality.
Audio Excellence
Great video deserves great audio, and the ATEM Mini Pro delivers on this front as well. It features a built-in audio mixer with EQ and dynamics processing, ensuring that your audio sounds crisp and clear. You can connect microphones, mixers, or even use the audio from your HDMI sources, giving you complete control over your audio setup.
Record Your Streams

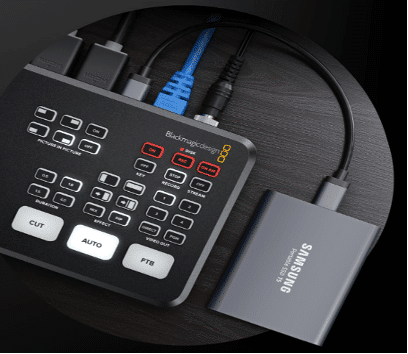

In addition to live streaming, the ATEM Mini Pro allows you to record your broadcasts directly to an external USB drive. This feature is incredibly useful for archiving your content, creating highlights, or simply having a backup of your live productions.
ATEM Software Control
For those who want even more control and customization, Blackmagic provides ATEM Software Control. This software allows you to finetune your video and audio settings, create macros for complex operations, and even control the ATEM Mini Pro remotely from your computer. It’s a powerful companion that enhances the device’s capabilities further.
Key Features:

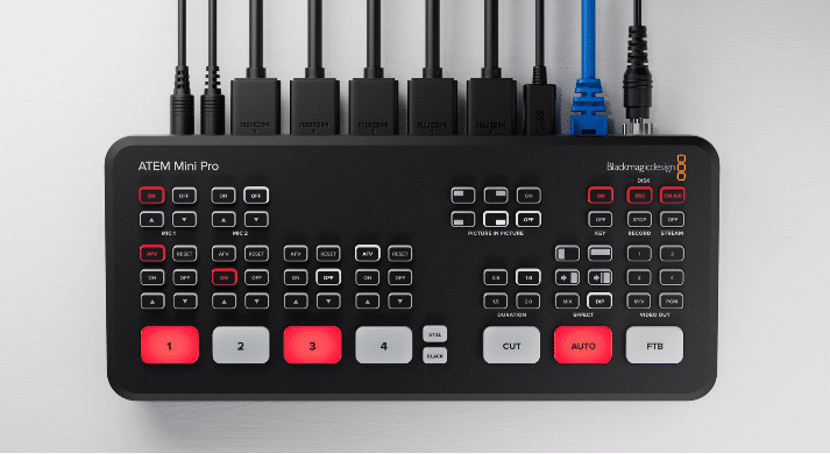

- 4Channel Live Stream HDMI Switcher

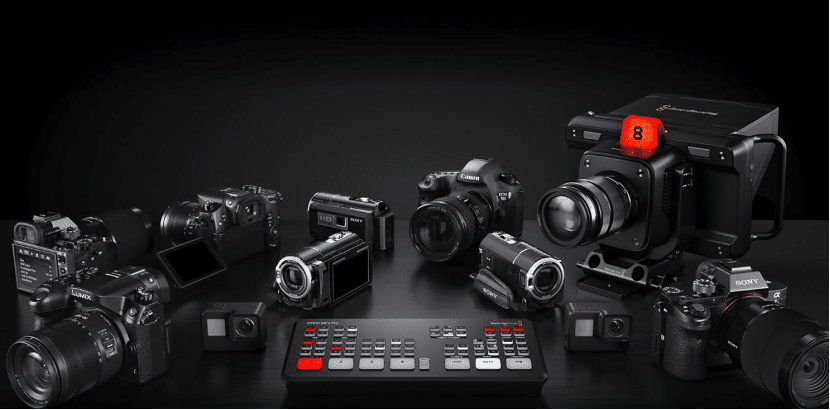

- Control up to Four BMPCC 6K/4K Cameras
- Live Tally, Stream, and Record Status
- Record Button, Channel Preview Multiview
- 2Channel Digital Audio Mixer per Source

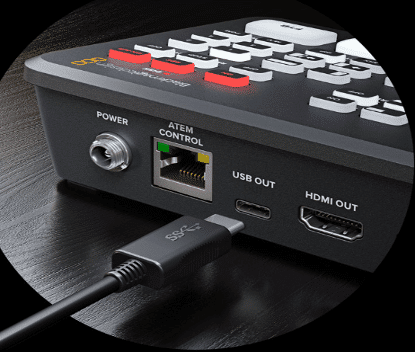

- HDMI Output, Ethernet ATEM Control
- Media Player, Computer Input Support
- Upstream and Downstream Keyers
- Color and Pattern Generators
- DVE Transition, Chroma/Luma Keyers
New Features:
- Same rear panel as ATEM Mini with added buttons and software features
- Stream video up to 1080p HD
- Quick stream, onair, and record buttons
- Hardware encoder, so there’s no need for additional streaming software
- Control and configure timecode, stream status
- Full support and control features for BMPCC 6K and 4K cameras
- Simultaneous USB recording
- Integration with MultiDock for live hard drive switching
- Customize advanced settings with XML files
- Software multiview with program previews, graphics, record status, onair status, audio meters
- Program preview input and output buttons
- Tally light control for BMPCC 6K/4K cameras
- Automatic timecode sync for all cameras
Technical Specifications:
- Available M/E Layers: 5 M/E
- Effect Types: 1 x DVE, Graphic, Transition, Chroma Key, Alpha Key, Luma Key
- Downstream Keys: 1 x Chroma, DVE, 2 x Luma
- Audio Mixing: 2Channel Mixing
- Switching Type: Pushbutton
- Number of Video Input Sources: 4

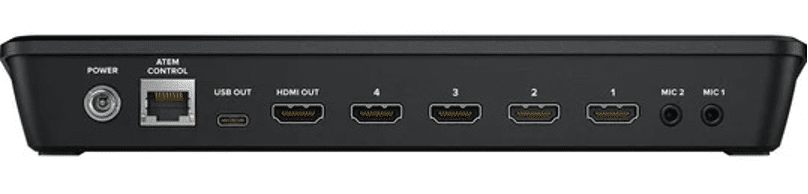

- Video Input Connectors: 4 x HDMI Female
- Input Video Format: HDMI (10Bit 4:2:2 YUV)
– 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
-1080i: 50/59.94/60 fps
-720p: 50/59.94/60 fps
- Audio Input Connectors: 2 x 1/8″ / 3.5 mm TRS Stereo Analog Female
- Embedded Audio Input: HDMI: 2Channel (per Input)
- Video Output Channels: 1
- Video Output Connectors: 1 x HDMI
- Output Video Format: HDMI / RJ45 (10Bit 4:2:2 YUV)
-1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
- Embedded Audio Output: HDMI: 2Channel (per Output)
- Multiview Output: Yes
- Monitor Output: 1 x HDMI
- Other I/O: 1 x RJ45 LAN, Sync, Tally, Timecode, Firmware, Control Input/Output
1 x USB TypeC Firmware, Control Input/Output
- OS Compatibility: macOS 10.14 or Later, Windows 10
- Power Connector: 1 x Barrel (12 VDC) Input
- Power Consumption: 36 W
- Operating Temperature: 41 to 104°F / 5 to 40°C
- Storage Temperature: 14 to 140°F / 10 to 60°C
- Operating Humidity: 0 to 90%
- Dimensions: 9.35 x 4.07 x 1.38″ / 23.75 x 10.34 x 3.51 cm
- Weight: 19.4 oz / 550 g
- Package Weight: 2.32 lb / 1.05 kg
- Box Dimensions (LxWxH): 11 x 5.7 x 4.65″
In the Box:
- Blackmagic Design ATEM Mini Pro HDMI Live Stream Switcher
- 12V Power Supply with International Adapters
- Limited 1Year Warranty
Order your ATEM Mini Pro today and experience the future of live production. Your audience will thank you, and your content will shine brighter than ever before.
